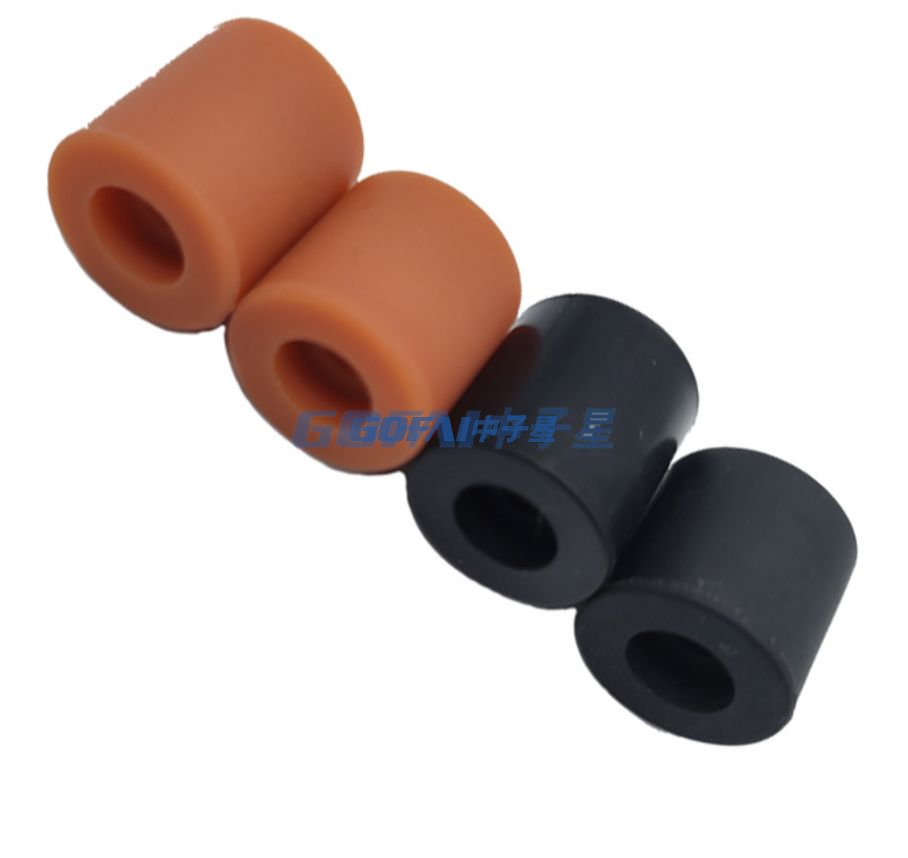

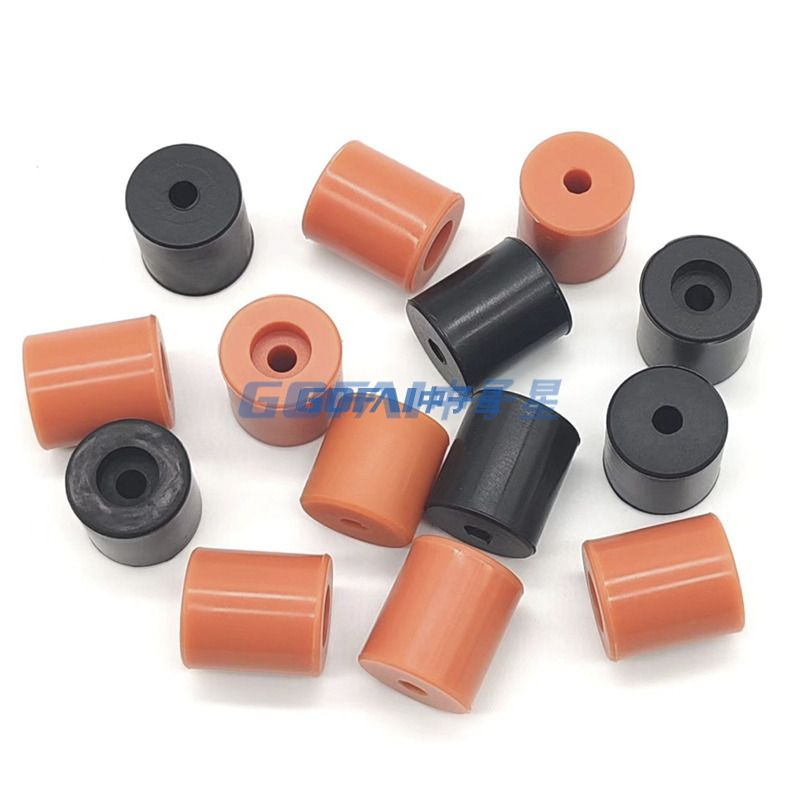

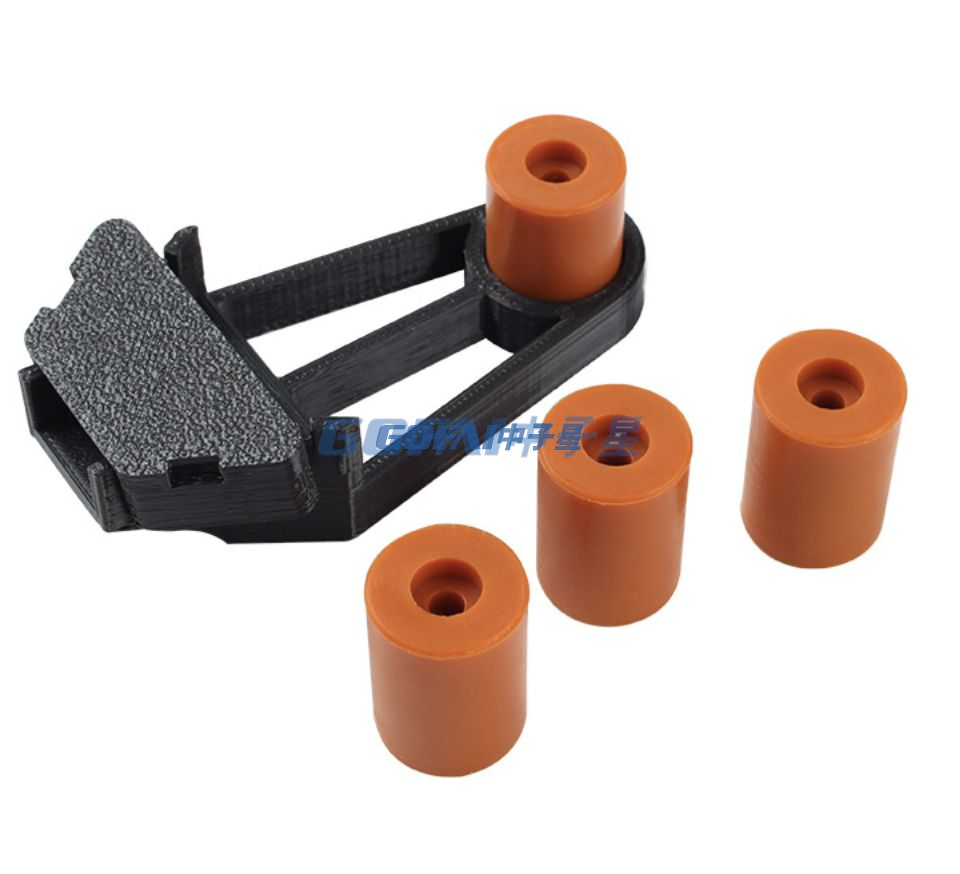

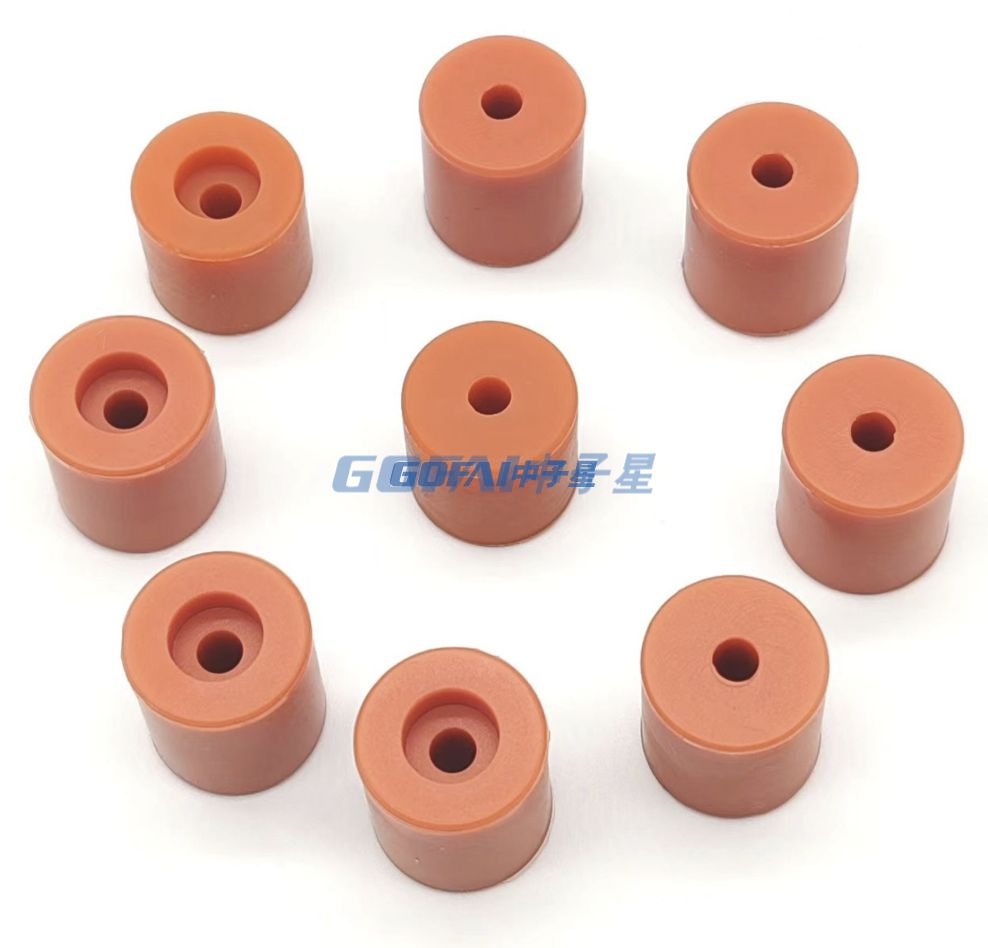

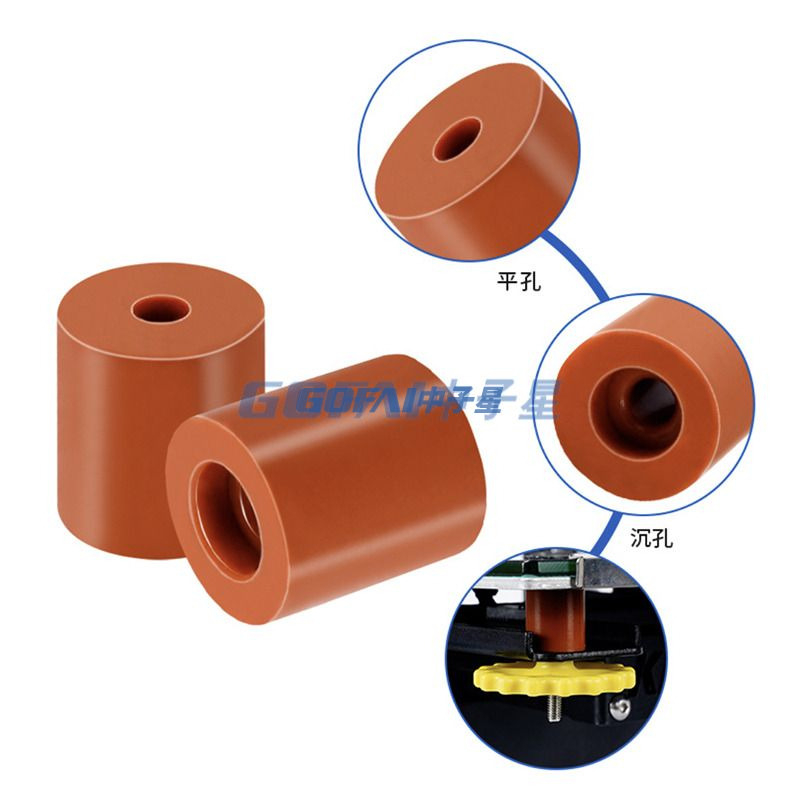

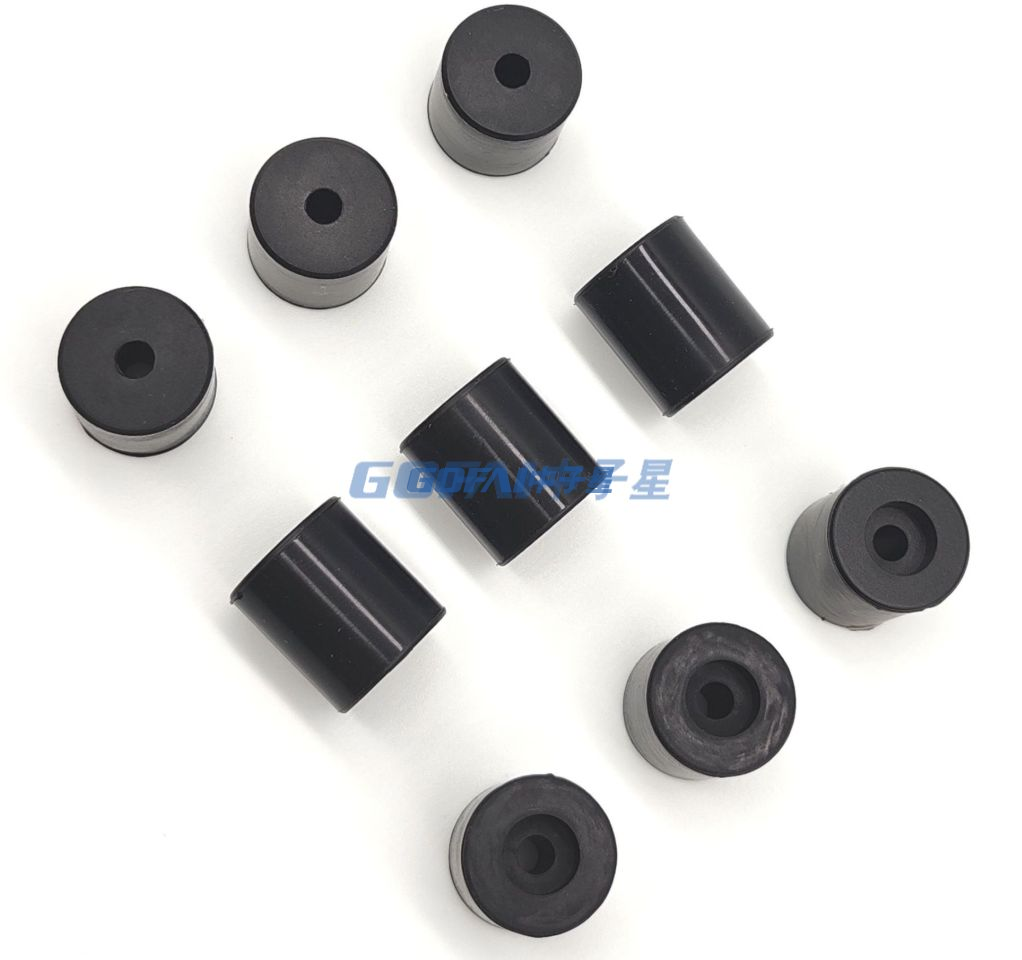

**Product Use:** Leveling the 3D printer print bed.
**Product Features:** High temperature resistance; larger contact area compared to springs for better stability; good elasticity, excellent fatigue resistance, shock absorption and energy absorption; freely adjustable.

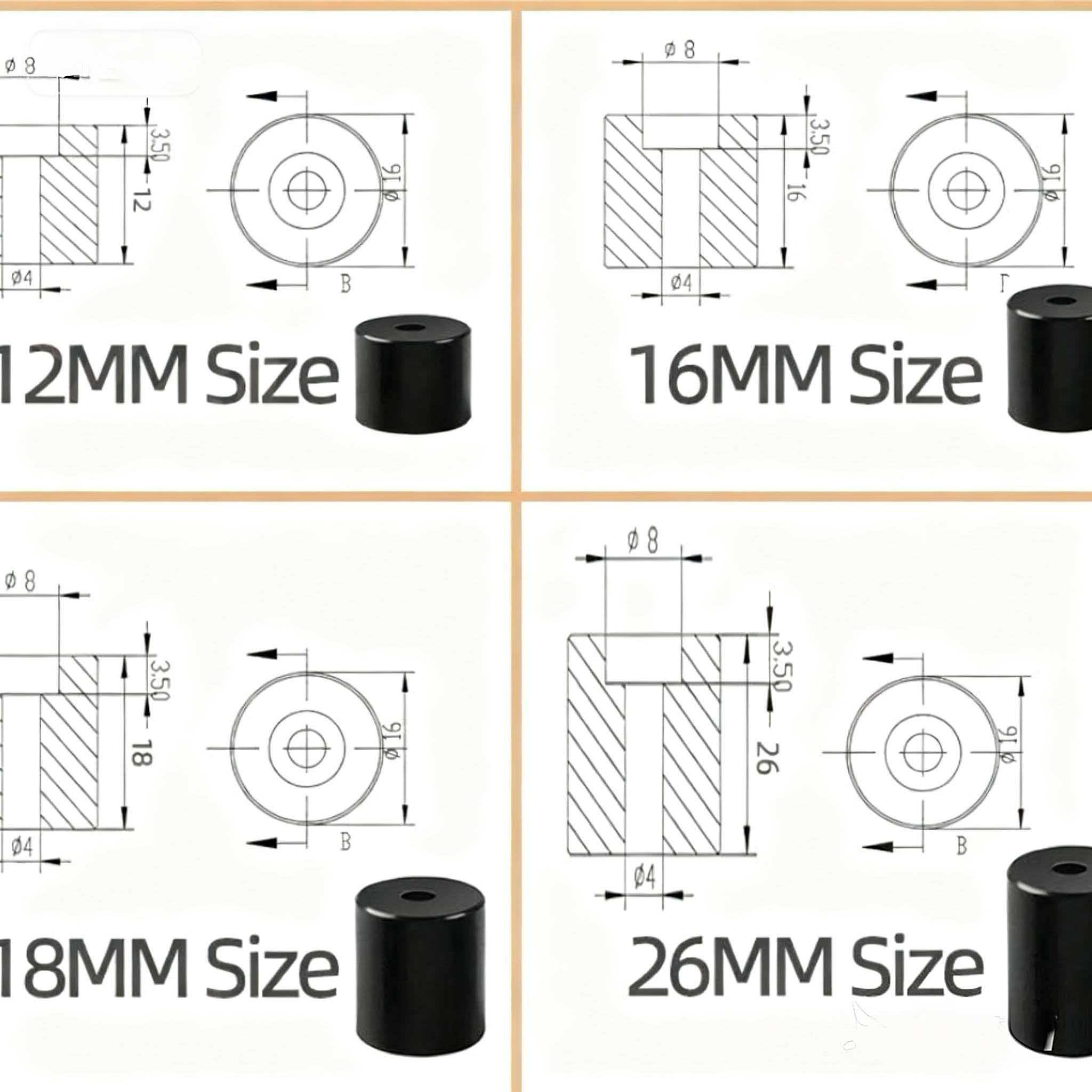

Typically, a printer requires four silicone leveling columns. Options include four columns of 18mm height, or three of 18mm plus one of 16mm.
In 3D printing platforms, the "three high, one low" design of silicone columns is primarily used to ensure bed levelness and print quality. The specific reasons are as follows:
**Three high, one low:** By adjusting three higher silicone columns and one lower column, the print bed can be leveled more precisely, reducing the difficulty of manual leveling.
- **Error compensation:** This design effectively compensates for minor unevenness in the bed or frame, ensuring a consistent distance between the nozzle and the bed.
- **Three-point support:** The three higher silicone columns form a stable support plane, preventing the bed from wobbling.
- **Flexible adjustment:** The lower silicone column allows for fine-tuning, ensuring overall bed stability.
- **Easy leveling:** Users only need to adjust the lower silicone column to quickly level the bed, making operation simple.
- **Reduced error:** Compared to using four columns of equal height, the three-high one-low design reduces adjustment variables and lowers the risk of error.
- **Wide applicability:** This design is suitable for various 3D printers, especially those with automatic bed leveling systems.
- **Strong compatibility:** It can better adapt to structural differences among different printers.
**Summary:** The three-high one-low silicone column design significantly improves 3D printing quality and efficiency by
simplifying leveling, enhancing stability, and increasing compatibility.
