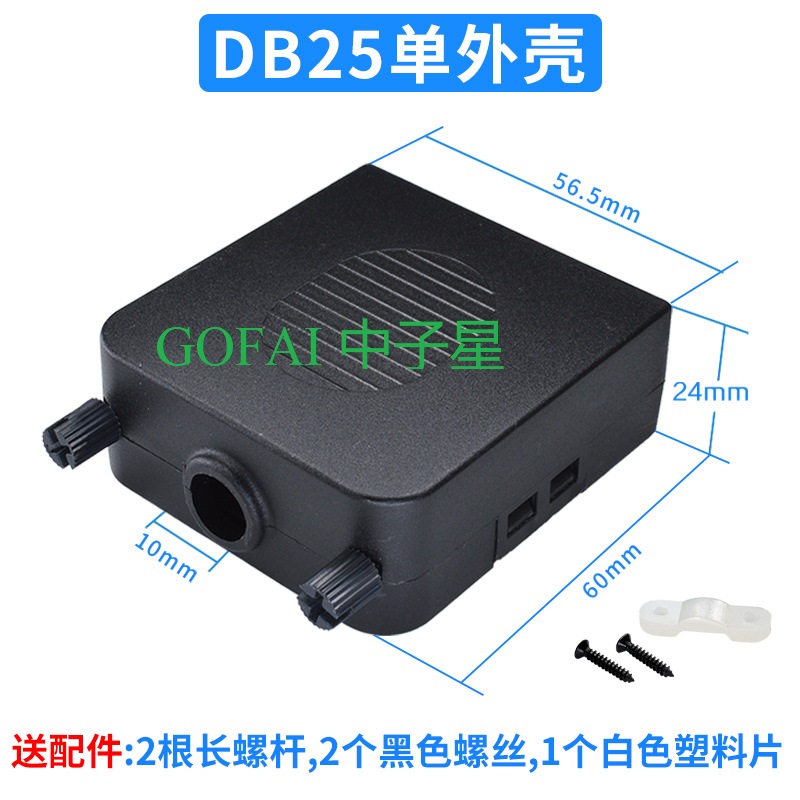

DB25 Serial Port D-Sub VGA Connector Kit Plastic Cover Housing Assembly Shell

DB9  DB15 DB25 male  female connector solid pin module removable plastic casing

D-Sub 9-pin DB9 (male/female) connector solid pin module+removable plastic casing

The gofai top quality D-Sub 9-pin plug-shelf
Module: D-Sub DB9 pin (male/female) white. 9 pin solid pillars, the whole car pin gold-plated.
Housing: high-precision OEM detachable plastic case, contains the accessories line hole diameter for selection,
Uses: computer serial port; the industrial RS232/RS-422/RS485 interface.
Solid contact, durable, suitable for the pursuit of high reliability, high strength and can withstand frequent plugging applications.

Approximate size: 3.75mm / 5mm / 7mm / 9mm / 10mm

D-Sub 25-pin DB25 (male/female) connector solid pin module+removable plastic casing

The gofai top quality D-Sub 25-pin

Module: D-Sub the DB25 pin (male) white. 25 pins are all solid pillars, full-bur, genuine gold plated.

Housing: high-precision OEM detachable plastic case, contains the accessories line hole diameter for selection,

Approximate size: 3.75mm / 5mm / 7mm / 9mm / 10mm

Uses computer parallel port; industrial control interface.

Solid contact, durable, suitable for the pursuit of high reliability, high strength and can withstand frequent plugging applications.

DB15  (male/female) connector solid pin module+removable plastic casing

The gofai top quality D-Sub 15-pin plug-shelf
Housing: high-precision OEM detachable plastic case, contains the accessories line hole diameter for selection,
Uses: computer I / O, industrial control interface.
To make solid contact, durable, suitable for the pursuit of high reliability, high strength and can withstand frequent plugging applications

Module: D-Sub DB15 pin (female) white. 15 pins solid pillars, full-bur, genuine gold plated

Approximate size: 3.75mm / 5mm / 7mm / 9mm / 10mm

D-Sub 37-pin DB37 (male/female) connector solid pin module+removable plastic casing

The gofai top quality D-Sub 37-pin
Module: D-Sub the DB37 pin (male) white. 37 pins are all solid pillars, full-bur, genuine gold plated.
Housing: high-precision OEM detachable plastic case, contains the accessories line hole diameter for selection,

14/20/26/36 Pin Socket Connector Servo Receptacles Header Gold Plated

Rubber core material: plastic PBT UL94V-0 black
Terminal material: copper alloy gold plated
Front shell material: plastic plated nickel
Product specifications
Current: 1A
Maximum voltage: AC 500V
Working temperature: -55 ° C -105 ° C
Housing: plastic PBT UL94V-0 black
Screw: Nickel plated with plastic
Shrapnel: stainless steel
Shrapnel cover: plastic PBT UL94V-0 black
Nut: Nickel plated with plastic
Clamp: Nickel plated with plastic
