Fan Air Conditioning Anti Noise Spring Isolation Hanger

Fan and air conditioning hanging Anti Vibration Noise Attenuation damper Mounts spring Isolation hanger
New base plate design of the steel housing with two downward-bent sides considerably increases rigidity of the housing.Housing is yellow zinc plated for better corrosion resistance.All hangers' elements are safe at solid load.Safety factor - Springs will accomodate 50% extra load from rated load to solid load. Springs are color-coded and easily replaceable. Standard design allows for angular misalignment of 15 degrees.
Top and bottom elastomer cups have embedded steel washer for uniform load distribution.
Availability:
Quantity:
  • GF-SH
  • Gofai
  • 178896
  • rubber,steel, silicone

Product Description

Fan and air conditioning hanging Anti Vibration Noise Attenuation damper Mounts spring Isolation hanger
New base plate design of the steel housing with two downward-bent sides considerably increases rigidity of the housing.Housing is yellow zinc plated for better corrosion resistance.All hangers' elements are safe at solid load.Safety factor - Springs will accomodate 50% extra load from rated load to solid load. Springs are color-coded and easily replaceable. Standard design allows for angular misalignment of 15 degrees. Top and bottom elastomer cups have embedded steel washer for uniform load distribution.
Product Name

Fan and air conditioning hanging Anti Vibration Noise Attenuation damper Mounts spring Isolation hanger
Material
Galvanized(Zinc Coated) Steel + Rubber
Net Weight
10g
Color
white, black, clear, etc
Certificate
ROHS, SGS, ISO
Application
soundproofing
Packing
polybag with cartons

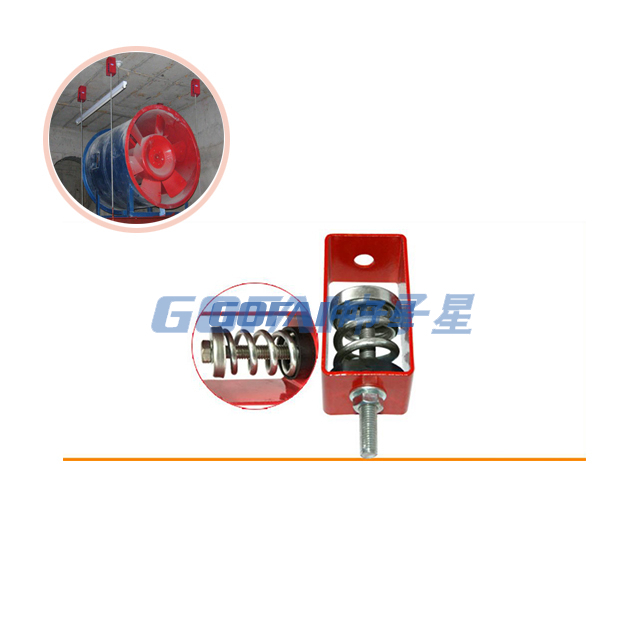

spring isolation hanger

spring isolation hanger
