Suspended Clip Sound Vibration Wall And Ceiling System

Name: Suspended Clip Sound Vibration Wall And Ceiling System
Brand: Gofai
Rating: 5.0 (8 reviews)

walls and ceilings shock absorber sound proofing resilisent sound isolation clips acoustic clips The GOFAI Sound Isolation Clip is a resilient sound isolation clip used to attach the gypsum wall board to interior walls and ceilings. Each Sound isolation Clip has a design load rating of 36 lbs. and can support up to two layers of 5/8” gypsum board when spaced no more than 24” x 48” on-center. Decoupling a wall involves the use of Resilient Isolation Clips or Sound Damping Pads. The clips should be staggered when installed (every other stud) to create less pathways for sound to transfer. The Resilient Isolation Channel easily clicks into the Resilient Clips, resulting in a 1 5/8” gap between the stud and drywall. Fine thread screws are used to screw the dry wall into the Resilient Channel. Screws should be the correct length in order to not pierce a stud, this will compromise the efficiency of the decoupled wall.

Availability:

Quantity:



Inquire Add to Basket

Model:
GF-G0
Brand:
Gofai
Code:
178896
Material:
steel and rubber

Product Description

Product Description

 walls and ceilings grid gypsum board hat furring channel sound proofing resilisent sound isolation clips acoustic clips

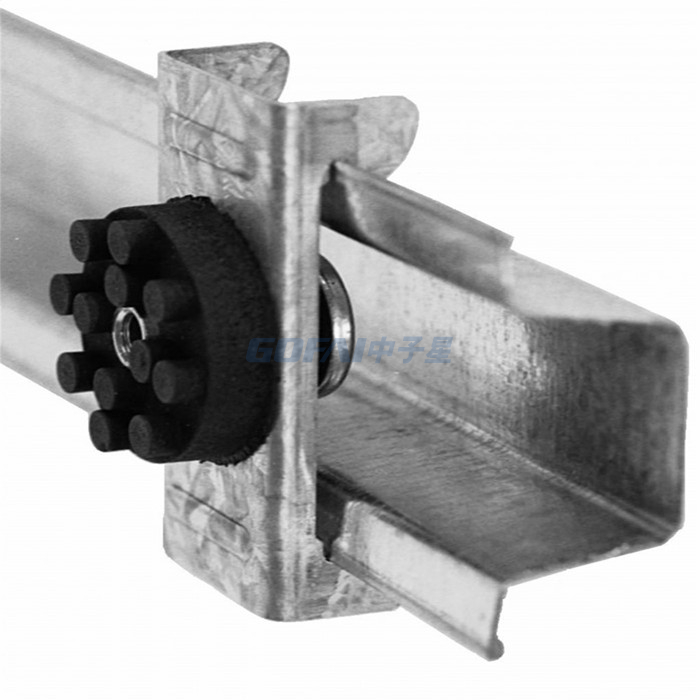

The GOFAI Sound Isolation Clip is a resilient sound isolation clip used to attach the gypsum wall board to interior walls and ceilings. Each Sound isolation Clip has a design load rating of 36 lbs. and can support up to two layers of 5/8” gypsum board when spaced no more than 24” x 48” on-center.
Decoupling a wall involves the use of Resilient Isolation Clips or Sound Damping Pads. The clips should be staggered when installed (every other stud) to create less pathways for sound to transfer. The Resilient Isolation Channel easily clicks into the Resilient Clips, resulting in a 1 5/8” gap between the stud and drywall. Fine thread screws are used to screw the dry wall into the Resilient Channel. Screws should be the correct length in order to not pierce a stud, this will compromise the efficiency of the decoupled wall.
1. Exquisite craftsmanship and materials make the damping performance stable and reduce the noise isolation effect.
2. The product has the characteristics of a large load range, low natural frequency, strong adaptability, long service life, simple structure, and convenient installation.3. Good isolation for low-frequency vibration and high-frequency air noise
4· Furring channel ,hat channel, soundproofing acoustic clips.
Email: grace@gofairubber.com

Product Name	walls and ceilings grid gypsum board hat furring channel sound proofing resilisent sound isolation clips acoustic clips
Material	rubber+ steel
Net Weight	80g
Color	red, black
Certificate	ROHS, SGS, ISO
Application	sound reducer and nosie control
Packing	polybag with cartons
