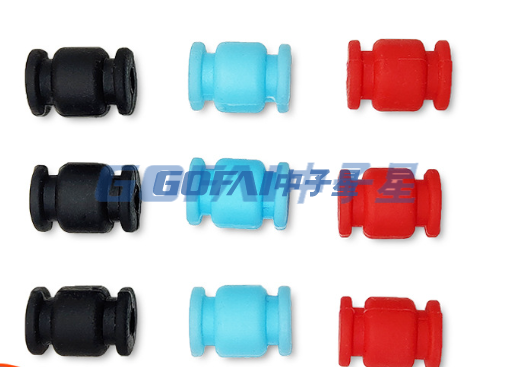

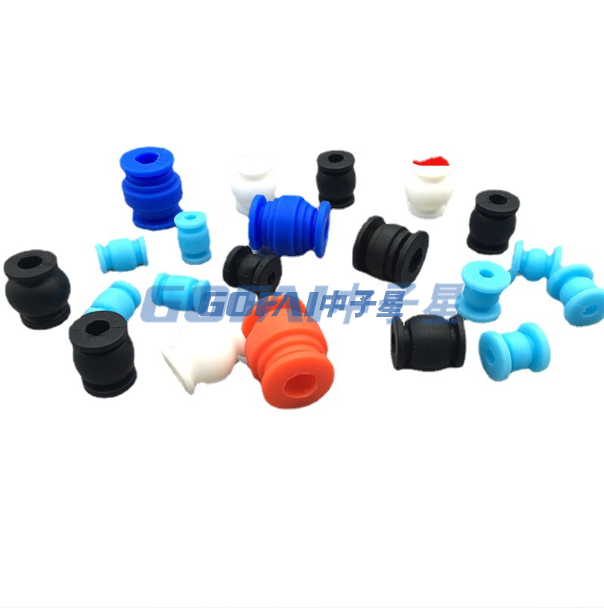

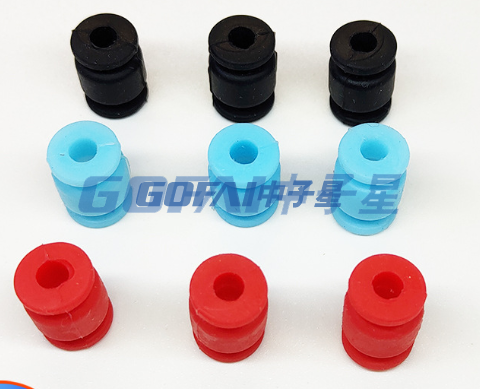

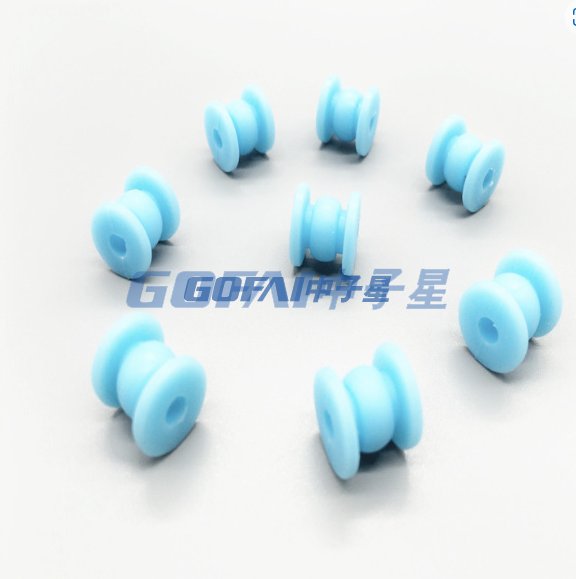

Uav Damping Ball Aerial Anti Vibration Silicone Rubber Ball

Custom UAV Damping Ball Gimbal Uav Anti Vibration Silicone Rubber Ball Aerial Damper Plate Aerial Shock Absorber

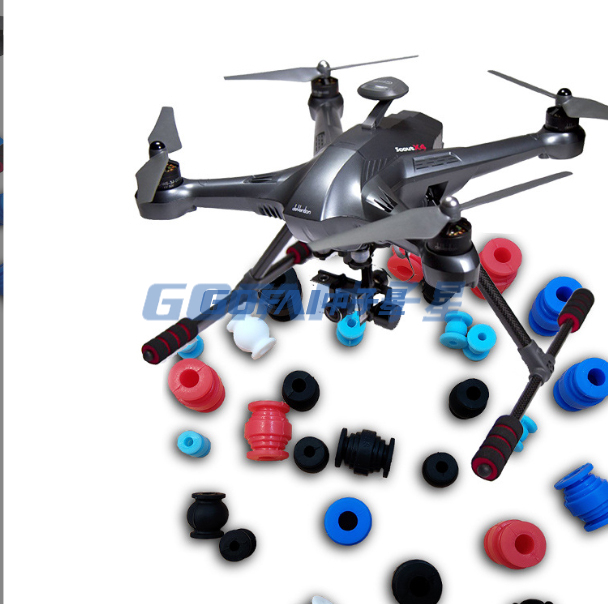

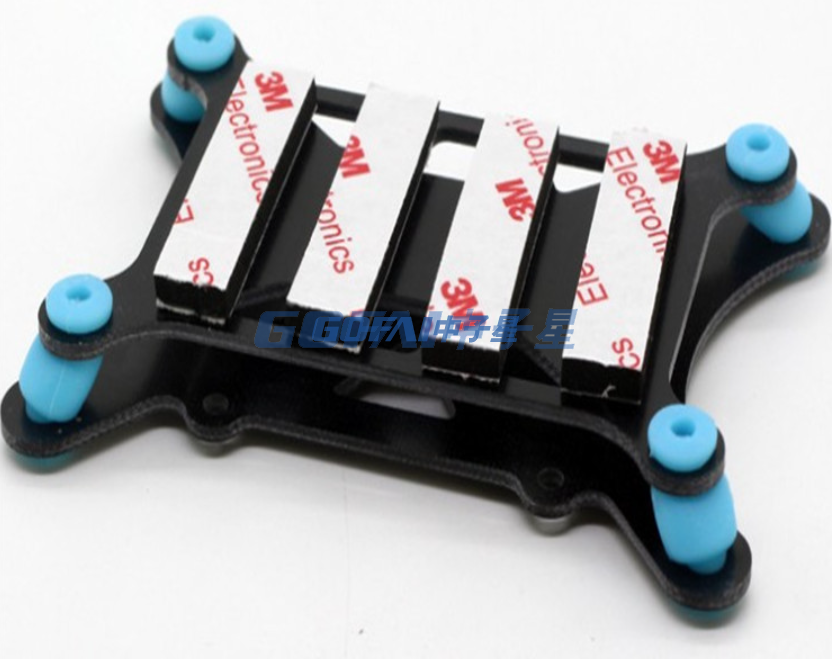

It is mainly used to eliminate the high frequency vibration of different frequencies generated by the aircraft during the flight, which is what we commonly call jitter. The image quality caused by the jitter is unsatisfactory, so it is particularly important to reduce the vibration phenomenon in the shooting process. This ball should be used in conjunction with a vibration damping frame or a vibration damping plate! The shock-absorbing ball has a reasonable design. Like a spindle spring, the vertical displacement can be 6-7mm, basically continuous compression, without sudden changes.
1. A single load bearing weight of 100g, a single resonance elimination ratio: 170Khz vibration absorption 90%, 120Khz absorption 82%, 85Khz absorption 60%;

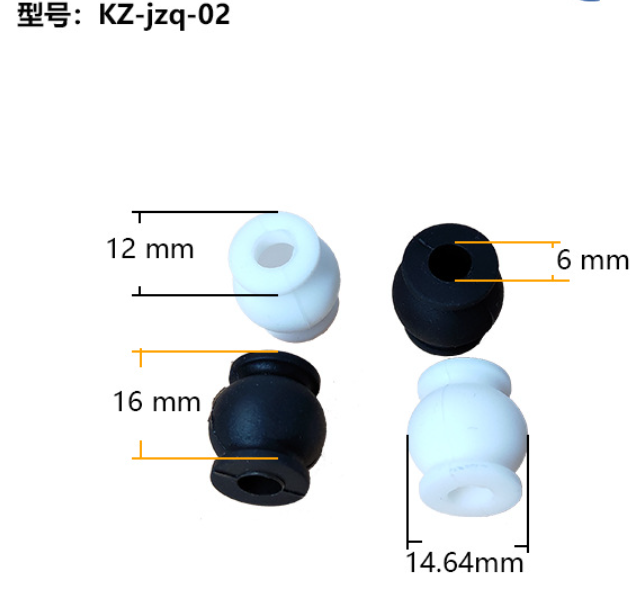

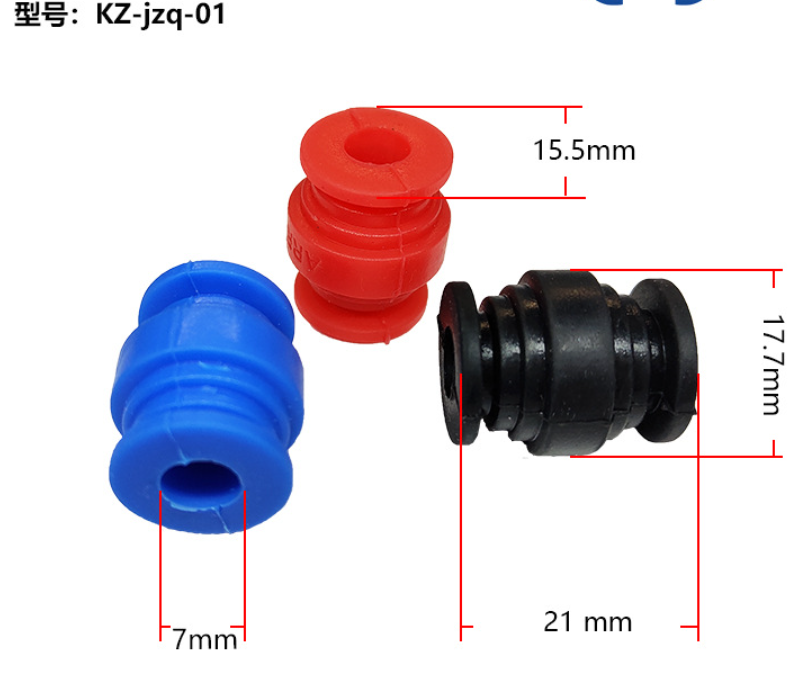

2. Two load-bearing weights of 150g, two resonance elimination ratios: 170khz vibration absorption 88%, 120Khz absorption 88%, 85Khz absorption 78%; The mounting hole reference is a 9mm diameter circular hole shock absorber ball with the thickest part straight through 17mm.
