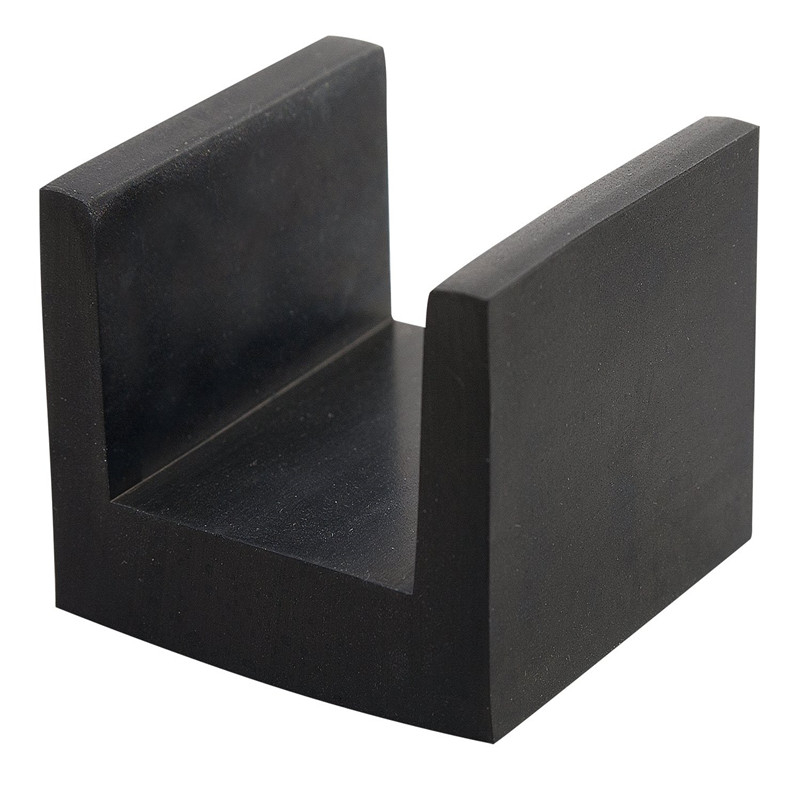

| Product name | Rubber floor joist isolators |
| Brand Name | GOFAI |
| Place of Origin
| Qingdao, China |
| Material
| Rubber, EPDM
|
| Size | Standard Size （37.2 * 54mm） |
| Color
| Black or Custom |
| Shape | U Shape |
| Acoustical design load | 500lbs@1/8”
|
| Feature | Fireproof, Sound isolation, Anti-Vibration |
| Customization | Size, color, logo |
| MOQ
| 100pcs |
| Lead Time | 7-15 days usually, or according to your quantity
|
| Sample | · Provide Samples Freely ·Sample Time: 5-7 Working Days |
| Package | small pp bag inside and carton outside |
About this item:
Rubber Joist Isolation Clips are used primarily in floating floor applications which are very popular in sound studios, recording booths, control booths, home theaters, and speaker floor mounts.
· Rubber Joist Clips are made from Vibrasorb EPDM rubber that is precision cut to fit snug on any "2x" joist without any fastener.
· Dimensions of the clips are 2-1/8" W x 2" L x 1-1/4" H. The thickness of the rubber between the joist and the subfloor is 1/2".
· Maximum load per joist clip is rated at 750lbs.
· Rubber Joist Isolation Clips are used as a highly effective way to isolate and decouple floor joists from the subflooring. Rubber floor joist isolators simply snap onto any "2x" joist or stud (2x4, 2x6, etc) and do not require any fastener that could harm the isolation value.
Product usage introduction：

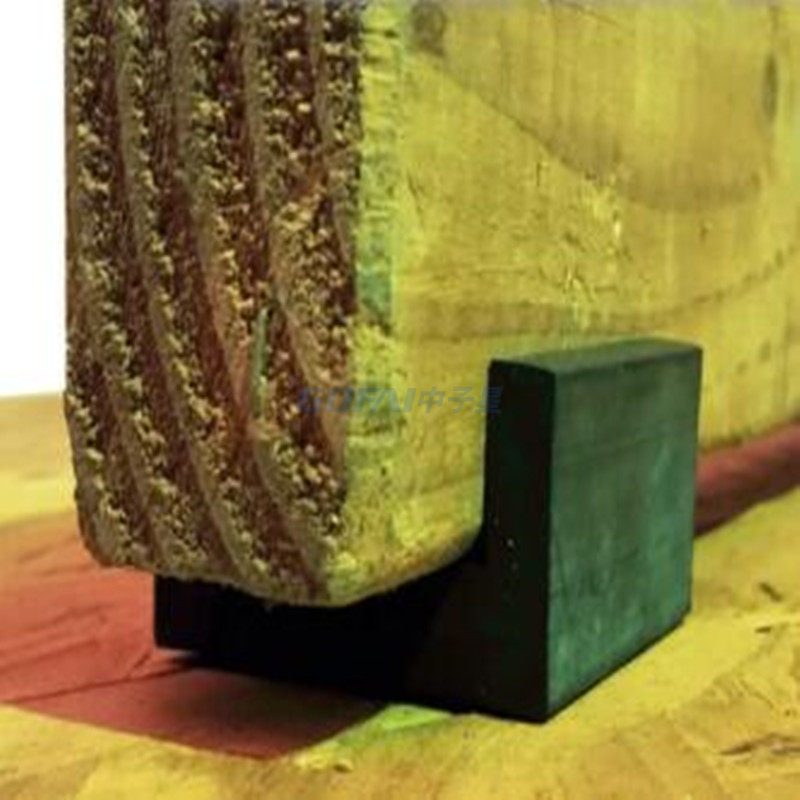

· The floor joist isolators would be installed on the bottom of the new floating floor joists when they are being laid down. Joist Isolators are also the ideal decoupling method for home theater raised platforms.
· Rubber floor joist isolators simply snap onto the joist and should not be glued, nailed, or screwed into the wood. The clips should be installed at both end of every joist and additional clips should be spread out every 16" along the joist. Project estimation is approx 65 clips per 100sf of floating floor.
