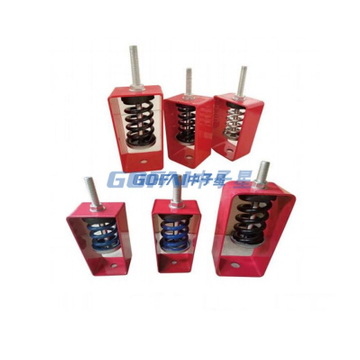

Fan and air conditioning hanging Anti Vibration Noise Attenuation damper Mounts spring Isolation hanger
The preferred choice for various sizes equipments and pipeline facilities is spring hangers. This product has the characteristics of high damping, low natural frequency, and easy installation. It has a significant effect on eliminating fixed sound transmission and suits for suspended
installation of various sizes of equipment and pipeline facilities. Applicable equipment: various lifting equipment such as ceiling air conditioners, axial fans, fresh air fans, pipelines, etc. Load range: 3-1500KGS

Fan and air conditioning hanging Anti Vibration Noise Attenuation damper Mounts spring Isolation hanger
New base plate design of the steel housing with two downward-bent sides considerably increases rigidity of the housing.Housing is yellow zinc plated for better corrosion resistance.All hangers' elements are safe at solid load.Safety factor - Springs will accomodate 50% extra load from rated load to solid load. Springs are color-coded and easily replaceable. Standard design allows for angular misalignment of 15 degrees.
Top and bottom elastomer cups have embedded steel washer for uniform load distribution.

Fan and Air Condition Hanging Anti Vibration Noise Attenuation Spring Mounts Hanging Spring Shock Absorber Isolator
1` boom 30 degree activity, easy installation, no vibration short circuit.
2.Double damping design effectively isolates low-frequency noise caused by vibration.
3. Anti-slip design of the spring seat.
4. Suitable for air conditioner case, fan, duct hanger, heavy equipment, hanging HVAC equipment.

☎ High quality materials: Made of high quality materials for durability. ☎ No corrosion on the surface: Surface paint treatment, no rust and corrosion resistant. ☎ Application: Suitable for air conditioner and fans, etc. ☎ Flexible and durable: The spring has long service ,anti-aging,the elastic force is durable for a long time. ☎ Reliable: The overall structure is strong and of high reliability.

For use in drop ceiling applications Made with resilient rubber to stop vibrations from traveling through the ceiling system. Three hanger options with varying load capacities. Recommended spacing: 16sf per clip (4 ft. on all sides between clips.) Red - 88 lbs Black - 110 lbs Blue - 200 lbs

The base has 1 bolt hole on base for rigid mounting when used for supporting machinery A nitrile friction pad on the base provides a non-skid surface. The ductile cast iron housing provides impact and fatigue resistance. The mount secures a heavy duty steel spring for absorbing shock and supporting the load, with nitrile sponge inserts to limit movement and prevent contact between upper and lower castings of the mount. The 110Lb payload of each hanger gives you space for heavy devices such as high end projector Can be preloaded to save valuable installation time Supplied with coupling nut Field interchangeable springs
